Description

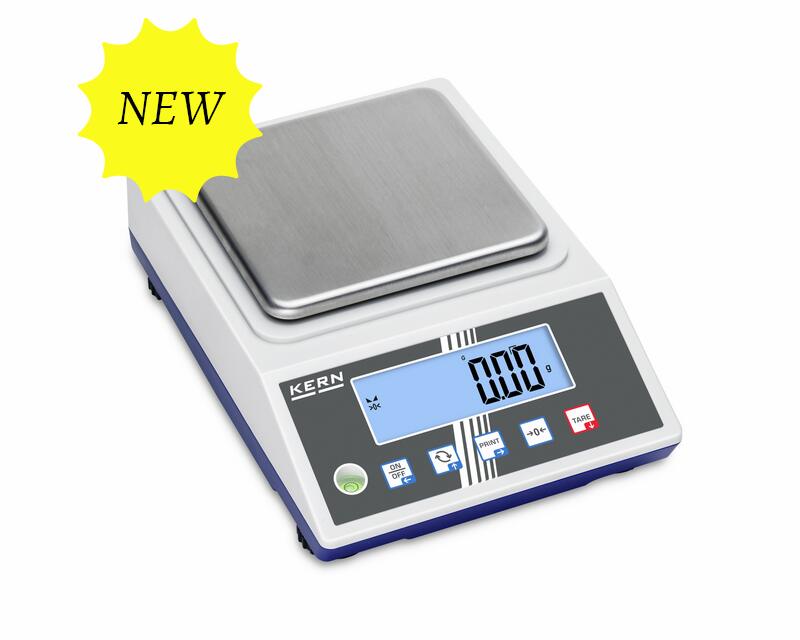

IoT-Line Precision Balance PCJ 600-2M
Precision balance with alibi *memory and optional **verification.
*Balance contains memories, e.g. for item data, weighing data, tare weights etc.
**According to the EU directive 2009/23/EG, balances must be verified if they are used as follows:
- in commercial trade when the price of a commodity is determined by weighing
- in the manufacture of pharmaceuticals in pharmacies and analysis in pharmaceutical and medical laboratories
- for official purposes
- in the production of prepackaging
- in medical applications
Every balance is tested by the metrological service and stamped with a verification mark. Its accuracy within the framework of permissible standard tolerances is thereby confirmed. EU verification applies to all member states of the EU.
Technical information
| Weighing capacity [Max] | 600 g |
| Readability [d] | 0,01 g |
| Verification scale interval [e] | 0,1 g |
| Units | kg, g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, ffa, m |
| Conformity assessment possible ex works | |
| Minimum weight [Min] | 0,5 g |
| Linearity | ± 0,03 g |
| Reproducibility | 0,01 g |
| Stabilization time | 4 s |
- IoT-Line Precision Balance PCJ 600-2M has the following:

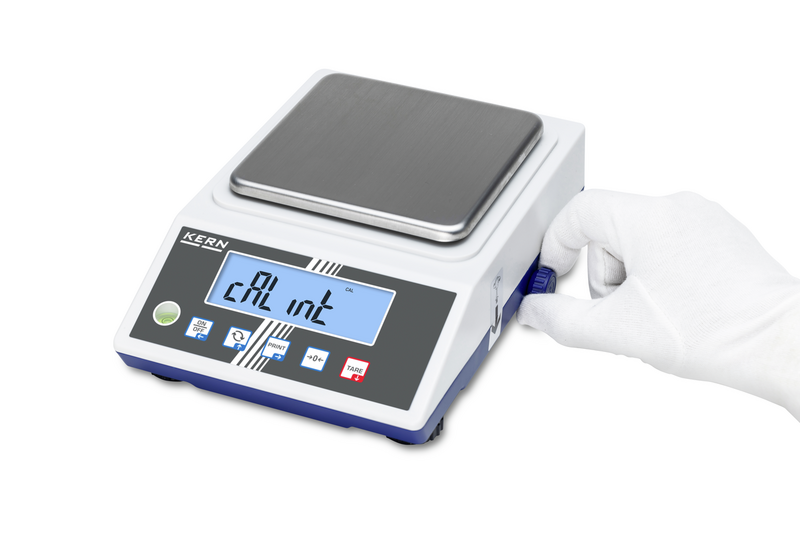

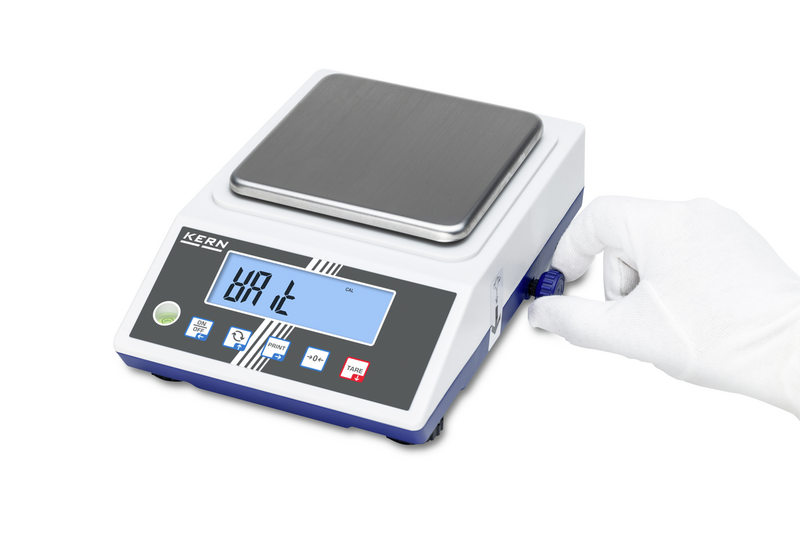

- Internal adjustment using the rotary control on the side guarantees a high degree of accuracy and means it can be used in any location
- With alibi memory for paperless archiving of weighing results. This also means the results of weighing with mandatory verification can be electronically evaluated and processed further
- The balance can be adjusted in battery operation without the need for mains power
- Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
- Menu with a large number of settings which can be adapted to your requirements. For example, you can specify button tones, assign a button with different functions for rapid access and adapt the print protocol as necessary
- Menu block prevents access by unauthorised users
- Ideal for connection to laboratory information systems (LIMS)
- GLP/ISO record keeping of weighing data, balance adjustment, etc. with date, time and identification number

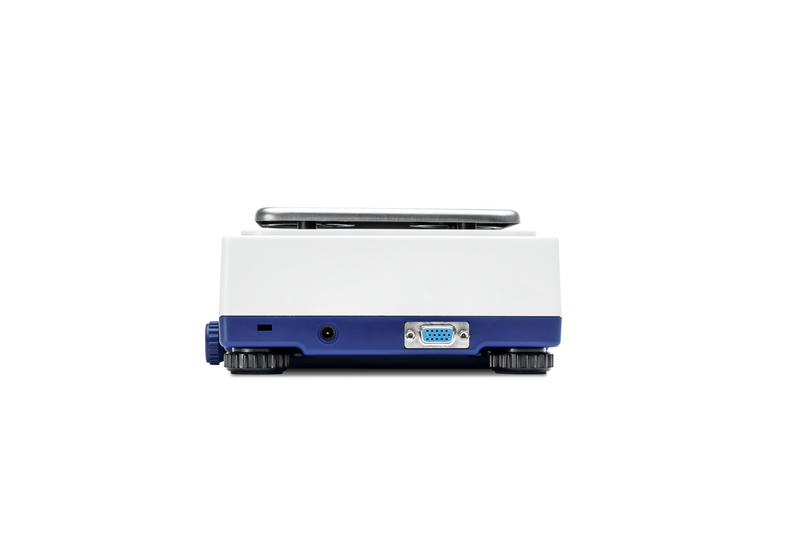

- Industry 4.0: KERN Universal Port (KUP): permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay
- Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
- Hook for underfloor weighing included with the delivery
- Protective working cover included with delivery
- The main scope of applications is:
– Laboratories
– Chemists
– Jewellers
– Pharmaceutical industry
Accessories (not all accessories available online, please contact our sales office for further information. Please ensure accessories are purchased at point of ordering)
YKG-01 – Dot matrix printer
YKG-A01 – A quality pack of replacement Paper Rolls for Kern’s YKG-01 Dot Matrix Printer.
911-013 – Matrix needle printer
911-013-010 – Quality replacement Paper Rolls for Kern 911-013 Matrix Needle Printer.
YKA-24 – External universal mains adapter, with universal input and optional input socket adapters for EU, CH, GB, US,
