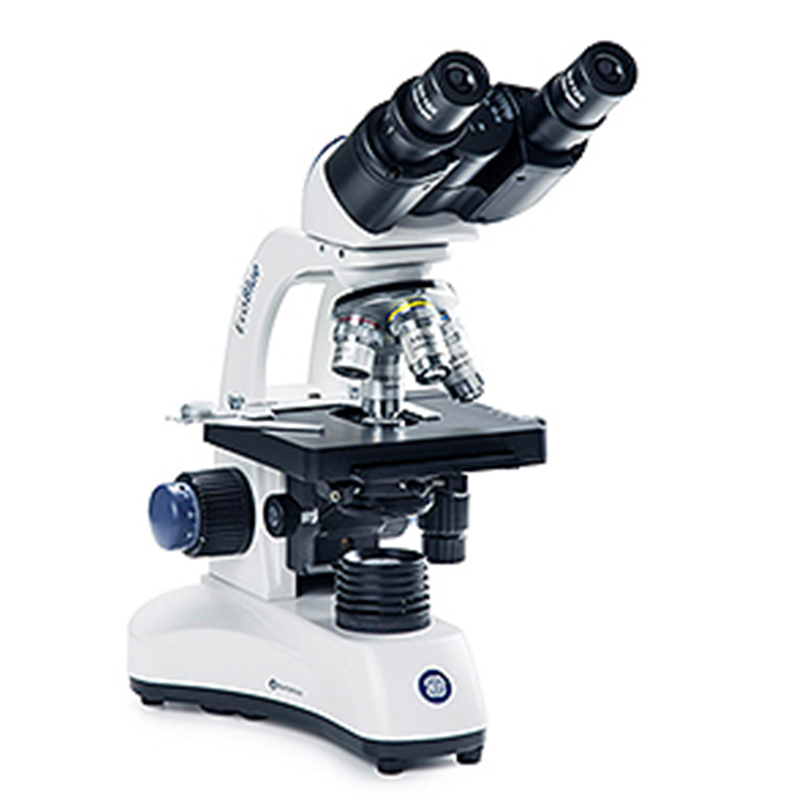

EcoBlue Binocular Microscope EC.1152
The Euromex EcoBlue series are especially developed for educational purposes with primary focus on ergonomics and excellent price/quality ratio. These microscopes are ideal for students and teachers. They are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives.
The EcoBlue microscope EC.1152 has a Binocular head with Siedetopf 45° inclined tubes 360° rotatable, DIN WF 10x/18mm eyepieces with pointer and achromatic oil objectives, 4x, 10x, S40x & S100x. The super sharp high resolution images of 40x, 100x, 400x and 1000x magnification will remain perfectly in focus when changing magnification. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Condenser & Illumination
Height adjustable Abbe condenser with iris diaphragm and filter holder. The adjustable illumination is provided by 1 W LED with built-in 3 rechargeable batteries.
Head
Monocular models with 45° inclined tubes, head is 360° rotatable. The interpupillary distance is adjustable between 48 and 75 mm.
Eyepiece(s)
Wide field WF 10x/18 mm eyepiece with pointer.
Nosepiece
Revolving nosepiece for four reversed objectives on ball bearings.
Objectives
Achromatic objectives 4x, 10x, S40x, S100x. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Focusing
Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel range is approximately 15 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control.
Stage
Mechanical 115 x 100mm square stage with integrated 55 x 22 mm X-Y adjustment.
Warranty: 5 years
Dimensions (mm): (h) 355 x (w) 270 x (d) 220. Weight 2.48kg
Package Contents Supplied with power cord, dust cover, spare fuse, user manual and 5 ml immersion oil.
Accessories Euromex offer a wide range of accessories which include a variety of digital cameras, eyepieces, objectives and lighting. Please refer to the relevant “ACCESSORIES” page.
